Troubleshooting Xero

This article covers how to resolve common issues and errors with Xero in Pabau.

---

Unable to Locate Xero in Pabau

Step 1: Navigate to App Marketplace

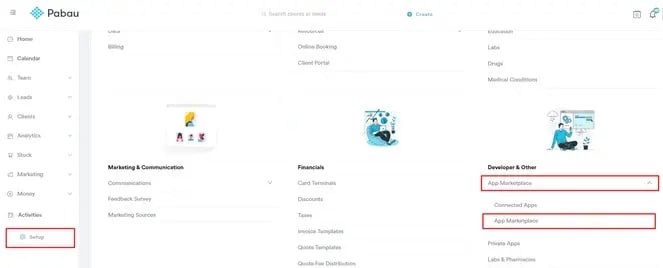

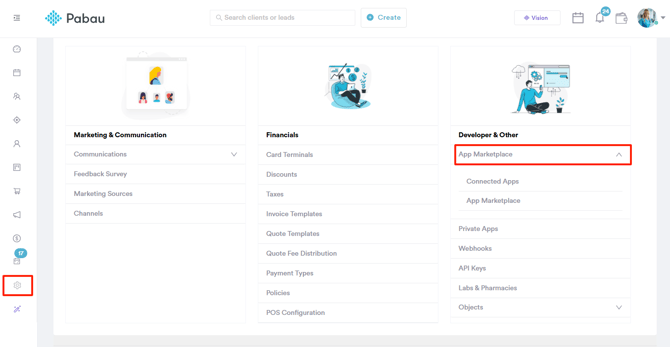

Start by logging in to your Pabau account using your login credentials. Then, navigate to the Setup page; you will find App Marketplace under the Developer & Other section. Expand the tab, and "App Marketplace" will be revealed.

Step 2: Navigate to Xero

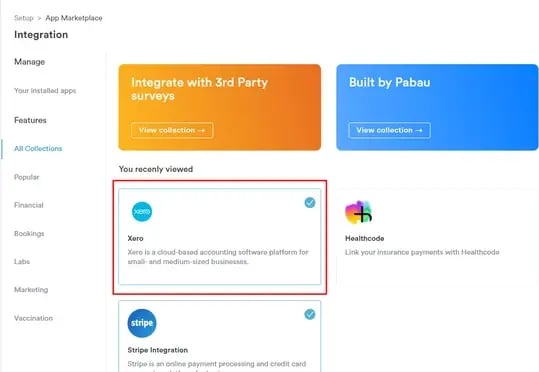

On the App Marketplace page, you will be able to locate Xero. If you have already integrated Xero into your Pabau account, you can also identify it in the "Connected Apps" tab.

---

 Data Fields Not Mapping Correctly from Pabau to Xero

1. Check the Default Invoice Status

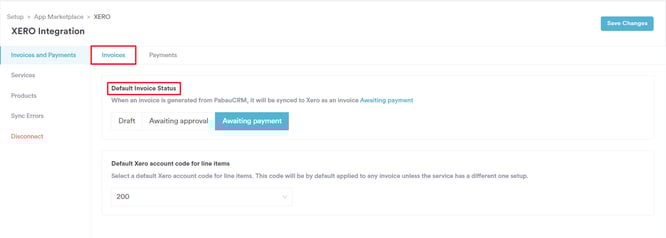

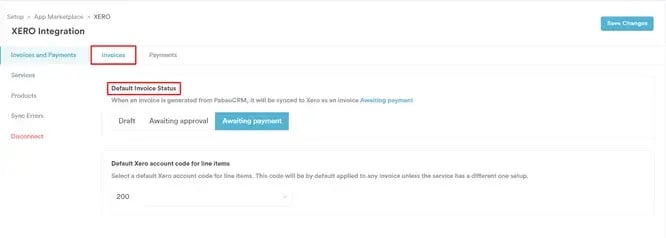

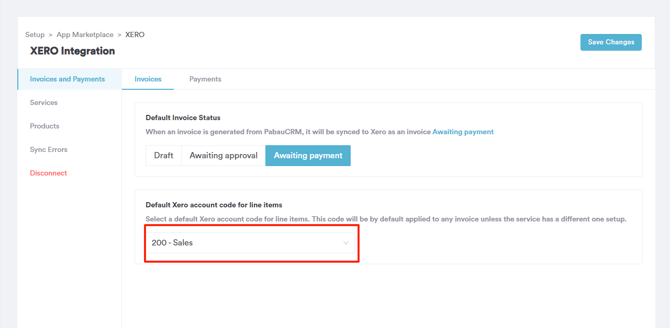

On the Xero Integration page, under the Invoices tab, you can select how you want the invoices to sync into Xero. That is set up in the Default Invoices Status. Ensure you have selected the correct status.

• Draft - the invoices created in Pabau will sync to Xero and maintain the same structure and details as when initially synced. For example, if you raise an invoice in Pabau with specific line items, client details, and payment terms, when this invoice syncs to Xero, it will appear in Xero with all these details intact. Any changes made to the invoice in Pabau after syncing will only automatically reflect in Xero if you manually update the invoice in Xero.

• Awaiting Approval - the invoices will sync to Xero, but the process will only be finalized once you manually approve them in Xero. This status allows you to review the invoices in Xero before they are officially recorded. Once you approve the invoices in Xero, they will be processed and recorded in your accounting system.

• Awaiting Payment (Recommended) - any changes made to the invoices in Pabau will be immediately reflected in Xero. For example, if you update the details of an invoice in Pabau, such as adding a new line item or changing the payment terms, these changes will sync to Xero in real-time.

2. Check Xero

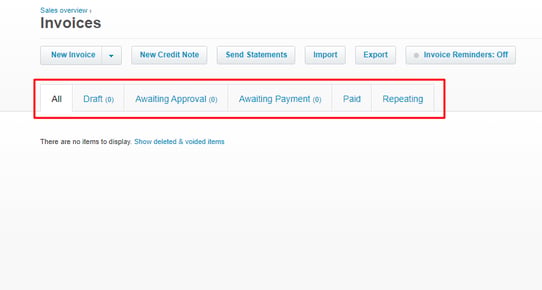

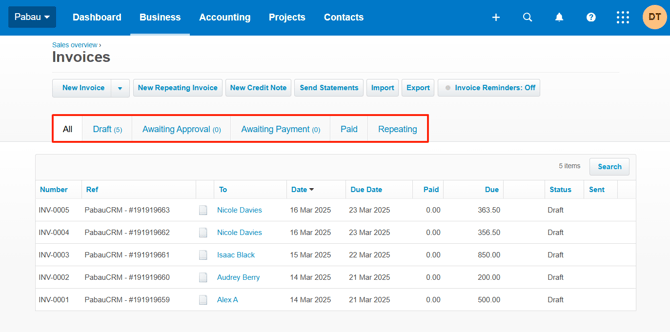

To double-check if everything is synced properly in Xero, log into your Xero account using your login credentials. Under the Business Tab located at the top left side of the page, you will find the "Invoices" tab. All the invoice statuses will be shown at the top of the page.

---

 Xero Account Codes Not Showing in Pabau

Step 1: Login to Xero

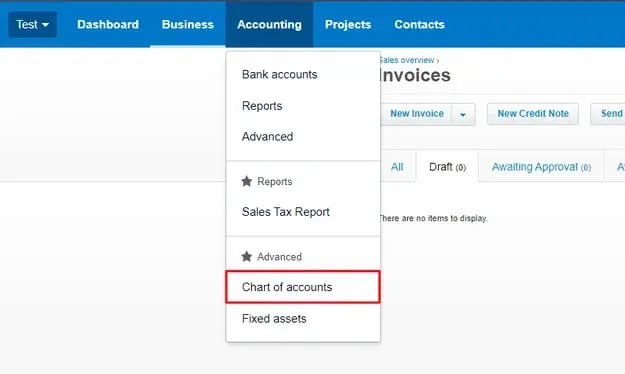

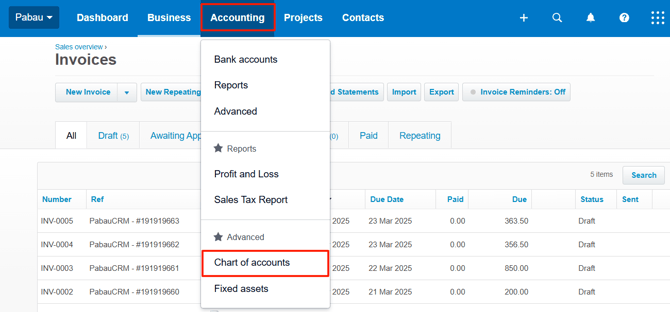

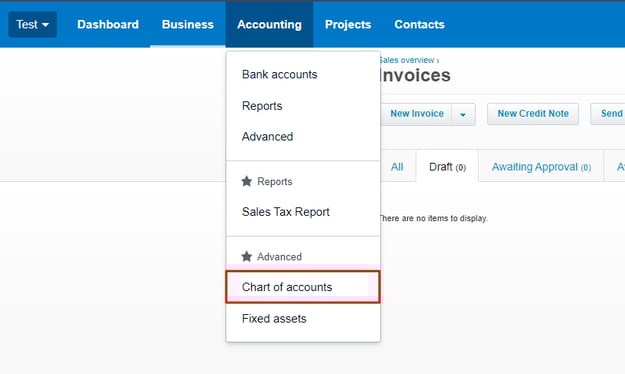

Start by logging in to your Xero account. Under the Accounting tab on the top left side of the page, you will find the Chart of Accounts option.

Step 2: Enable Account Code

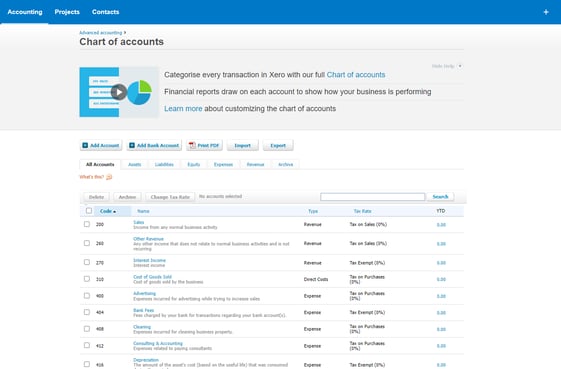

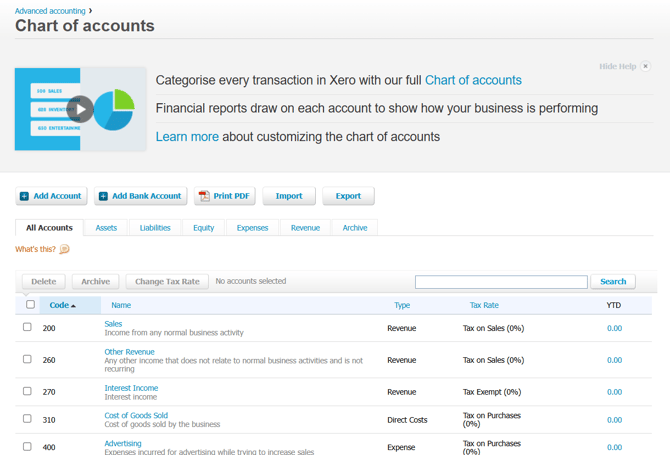

Once you are on the Chart of Accounts page, you can view a list of codes to integrate into your Pabau account. These codes help categorize every transaction.

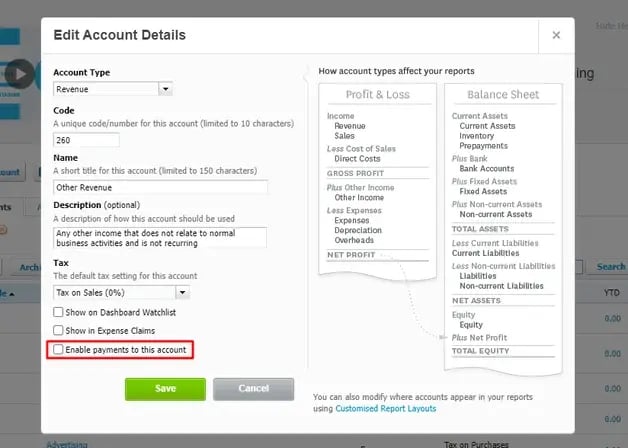

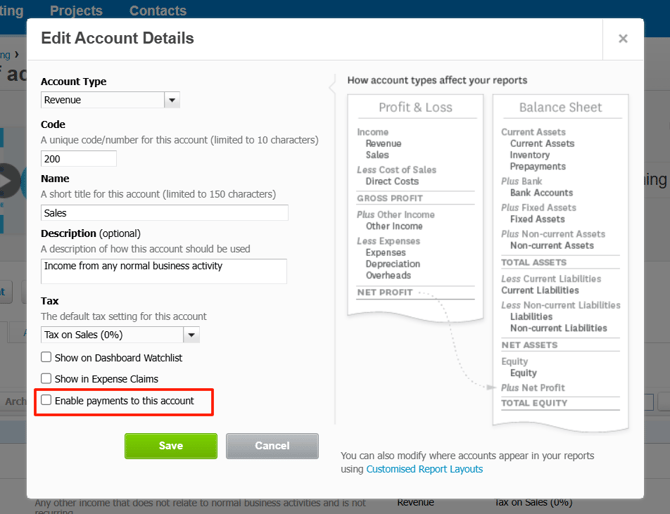

After locating the code you need, click on the name, and a pop-up window will appear where you need to tick the "Enable Payments to this Account" option. Click on the Save button to finalize the action.

Step 3: Check the Code in Pabau

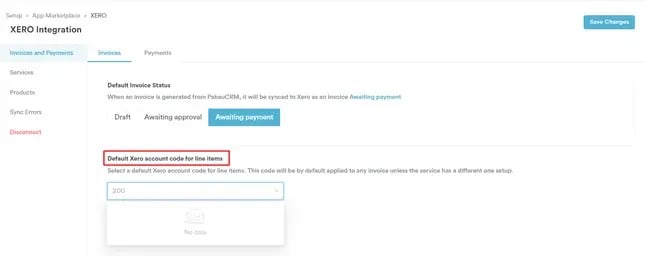

After enabling the code in Xero, log in to Pabau to ensure everything reflects properly. Navigate to the Xero integration page to proceed. Under the invoices tab, you will find Default Xero account code line items. Any codes enabled from Xero will appear in the dropdown menu, where you can select which code you would like to set as default.

---

  How to Incorporate Service-Specific Account Codes into Pabau

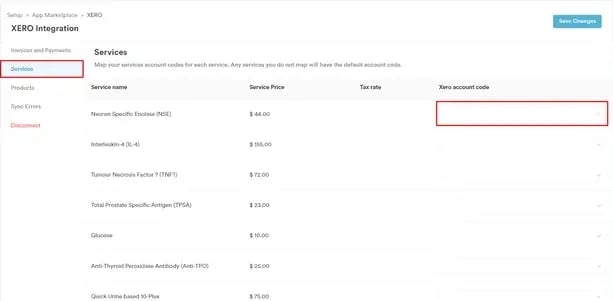

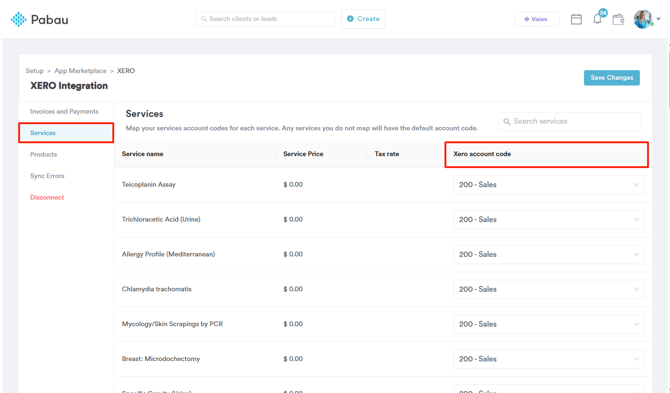

If you want to map some specific services with different codes, you can do that by going to the Services tab on the Xero integration page and selecting the available codes that appear on the dropdown menu on the far right side of the service name.

---

How to Check if an Invoice Has Been Synced to Xero in Pabau

Step 1: Navigate to Money

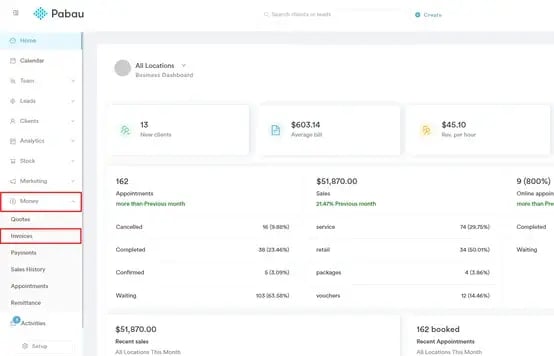

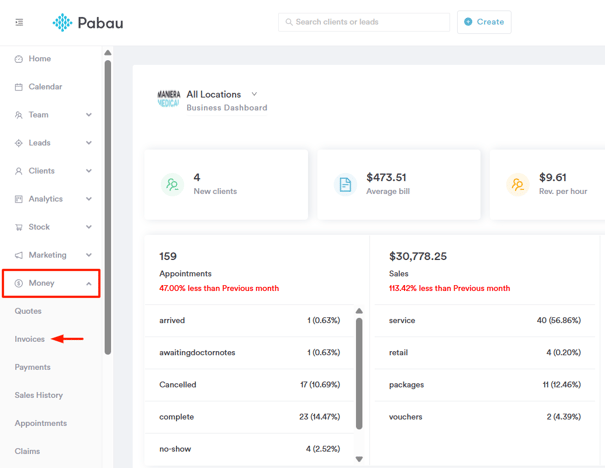

Once logged into Pabau, expand the Money tab on the left sidebar menu and click Invoices to get started.

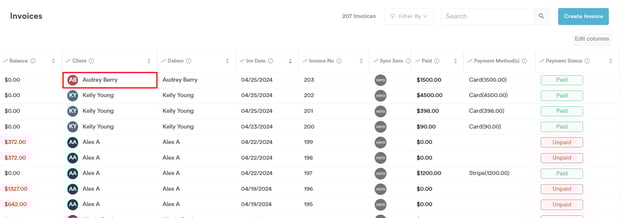

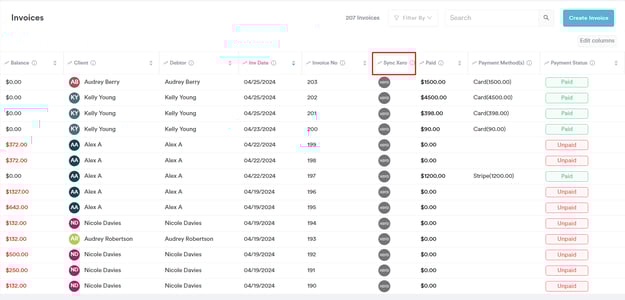

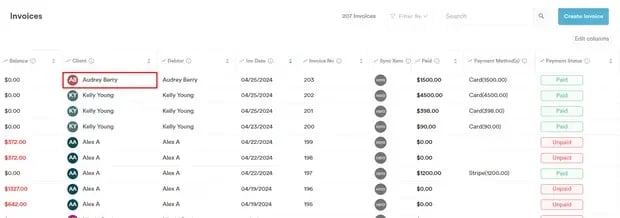

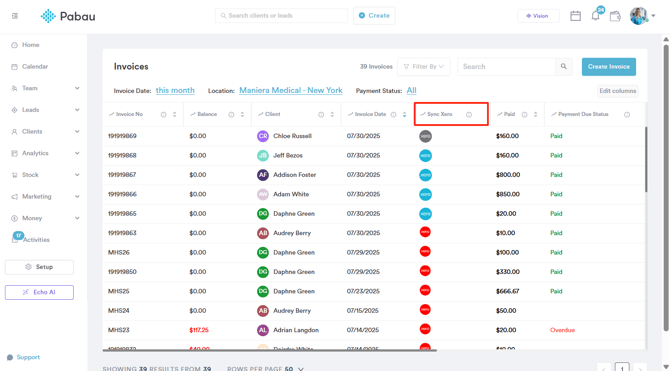

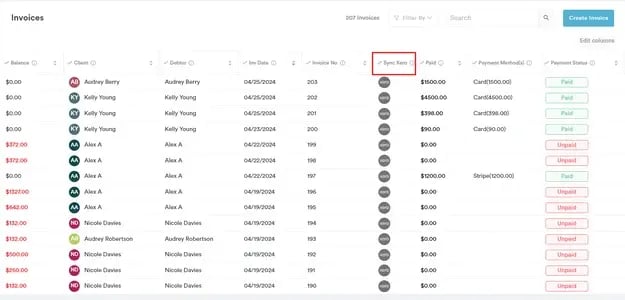

All invoices will be displayed on the Invoices page, and the Sync Xero column will be added automatically upon integration with Xero.

The icon on the Sync Xero column indicates the status of the invoice.

• Gray Icon- Syncing is in progress
• Red Icon- The Invoice is not synced
• Blue Icon- Invoice has been successfully synced

Step 2: Navigate to the Client Card

To view a client card, you can either click on the client name from the invoices listed on the invoices page or navigate to the search bar at the top of the page and type at least three letters of the client's name. Pabau will filter the results as you type.

Step 3: Switch to the Financials Tab

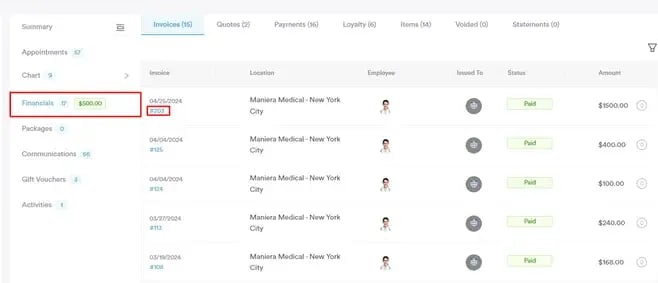

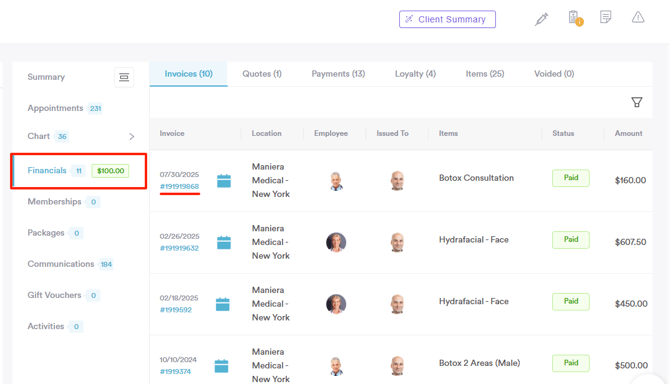

After selecting the client, you will find the "Financials" tab in the client card. This tab contains a record of all payments made by the client. Click on the invoice number to show all invoice details.

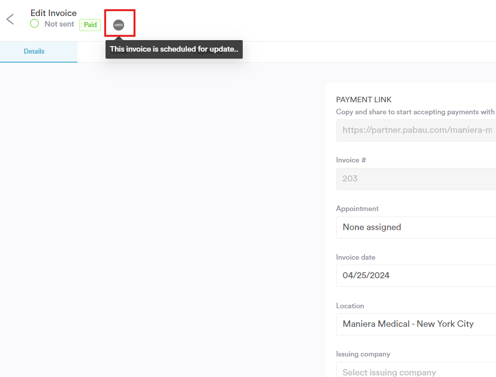

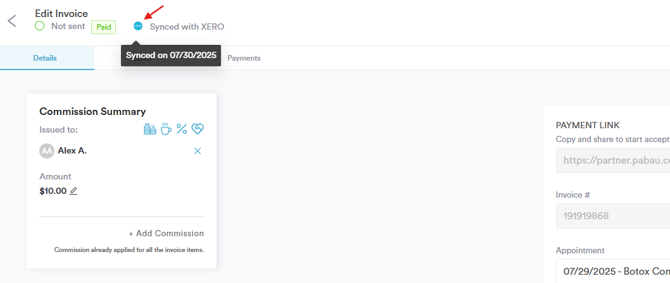

You can view the Sync Xero icon at the top left corner of the invoice. If you hover over it, it will display its syncing status.

Step 4: Verify Syncing Status

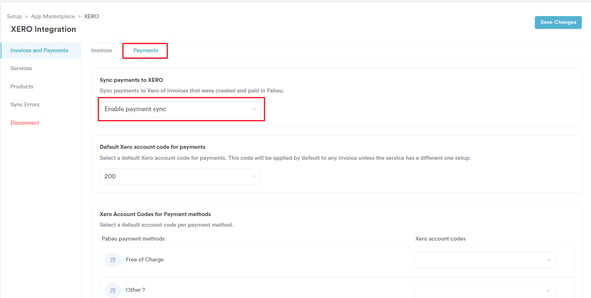

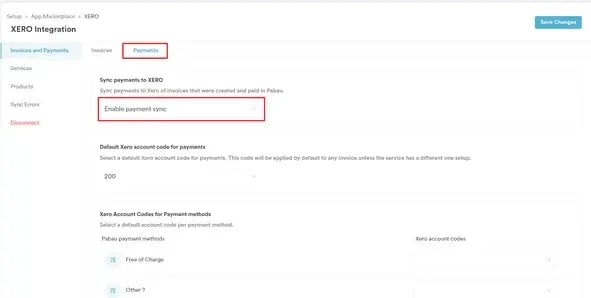

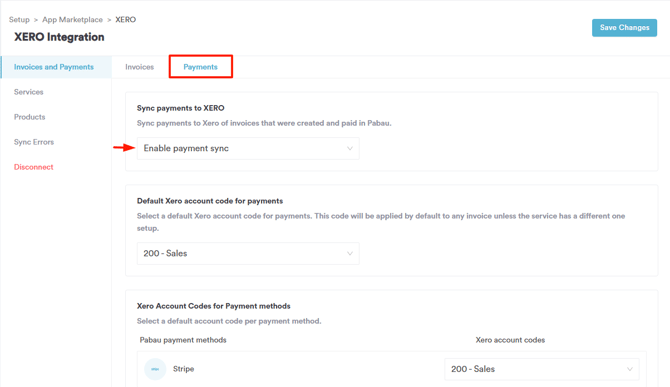

Under the Payments tab, ensure that the "Sync payments to XERO" option is enabled. If all settings are correct and invoices are not syncing, please escalate these cases to customer support for further investigation.

---

Detect Syncing Errors

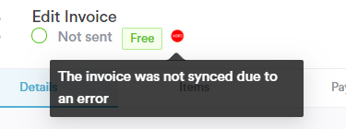

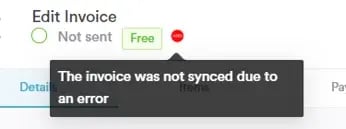

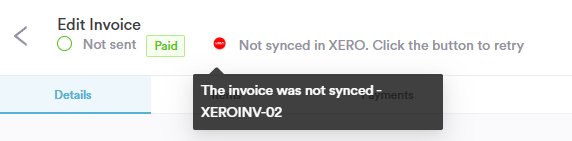

Whenever a sync fails to establish or complete its operation towards your Xero organization, the Red icon will appear, and a message will display when you hover over it.

If you hover over the Icon that did not sync automatically, you can click to schedule it for manual sync.

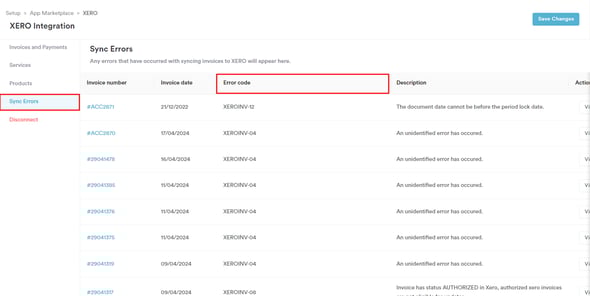

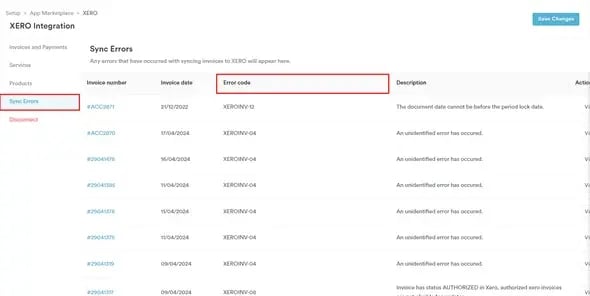

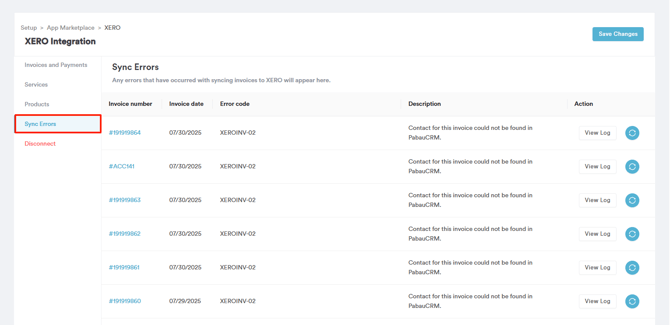

You can also identify all sync errors on the Xero integration page in Pabau under the Sync Errors tab. This page shows all invoices that have not been automatically synced and which errors you received.

If there was an attempt to sync the invoice and for some reason it failed, these are the most commonly identified reasons and errors we've encountered so far:

XEROINV-01

It means that the invoice you tried to sync cannot be found in Pabau; the potential cause is that a staff member might have deleted it from the system in the meantime.

XEROINV-02

This means that the contact assigned to the invoice cannot be found in Pabau; the potential cause is that a staff member might have deleted it from the system in the meantime.

XEROIN-03

We could not match the requested invoice GUID with an invoice for your Xero organization. A potential cause is that the invoice in Xero might have been deleted/archived.

XEROINV-04

It means the data was malformed to your Xero organization; please report these cases to customer support for investigation.

XEROINV-05

It means your company has Payments Enabled to be synced to Xero, but there were no payments attached to the requested invoice for sync. The invoice will be synced without payment information.

XEROIN-06

It means there was an error while trying to sync the attached payment information for the invoice to your Xero organization; please report these cases to customer support for investigation.

XEROINV-07

This means the invoice was edited/updated on the Xero Platform when initially it was generated from Pabau; these cases will not be processed by the API as they are considered illegal updates that do not follow the regular update process from Pabau to your Xero organization.

XEROINV-08

It means the invoice was generated with "Authorized" status; this is the final form of the invoice on the Xero platform, and they are not eligible to receive any sort of update from external APIs and/or systems.

XEROINV-09

This means that the default account code of 200 was deleted/archived from your Xero organization; in order to proceed with correct syncing, select a valid payment account in your Xero Integration dashboard.

XEROINV-10

This error indicates that the invoice ID could not be matched on your Xero platform. The potential cause for this is that the invoice is no longer available on your Xero platform.

For these types of issues, please email support, and we will manually trigger a new insert of those invoices to be synced on your Xero platform.

XEROINV-11

This error code shows that there has been an error while processing payments for this invoice; please take a look at your payment settings on the Xero Integration Dashboard on Pabau and make sure you have all proper Account Codes set with valid accounts that can accept payments.

If you encounter a warning message attached to your icon that is not listed in our list, please report it to our customer support staff.

---
